CK3300G-2

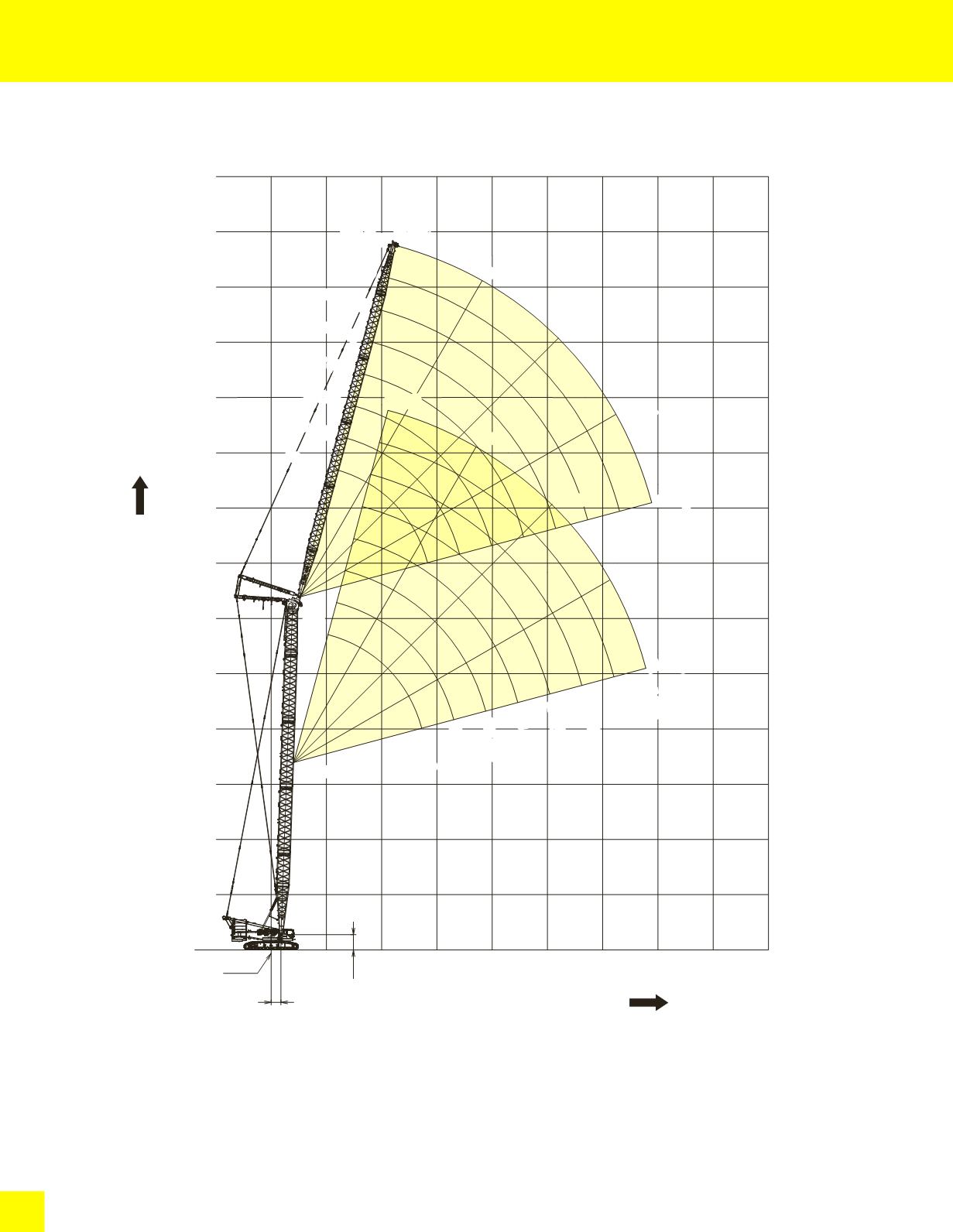

LUFFINGBOOM / JIB - WORKINGRANGES
Luffing Jib 88 deg
Height above ground
Radius from center of rotation
Center of rotation
5′ 11″ (1,800 mm)
9′ 1″
(2,780 mm)
33 (10)
33
(10)
66 (20)
Unit : ft (m)
66
(20)
98 (30)
98
(30)
131 (40)
131
(40)
164 (50)
164
(50)
197 (60)
197
(60)
230 (70)
230
(70)
263 (80)
263
(80)
295 (90)
295
(90)
328 (100)
360 (110)
394 (120)
427 (130)
460 (140)
217 (66)
197 (60)
177 (54)
157 (48)
138 (42)
118 (36)
98 (30)
78 (24)
98 (30)
197
(60)
217 (66)
197 (60)
177 (54)
157 (48)
138 (42)
118 (36)
98 (30)
78 (24)
60 deg.
60 deg.
75 deg.
75 deg.
45 deg.
45 deg.
30 deg.
30 deg.
15 deg.
15 deg.
• Working weight*
1
: 794,821 lbs (360,525 kg)
• Ground bearing pressure*
1
: Approx. 21.9 psi (151 kPa)
• Wind speed : 100% performance in wind speed up to 10 m/s (22.5 MPH)
*
1
: Including base machine, counterweights : 308,600 lbs (140,000 kg), Carbody weights : 88,200 lbs (40,000 kg),
Counterweight self removal device, 197 ft (60 m) luffing boom, 217 ft (66 m) luffing jib and 50 US ton hook block.
