CK3300G-2

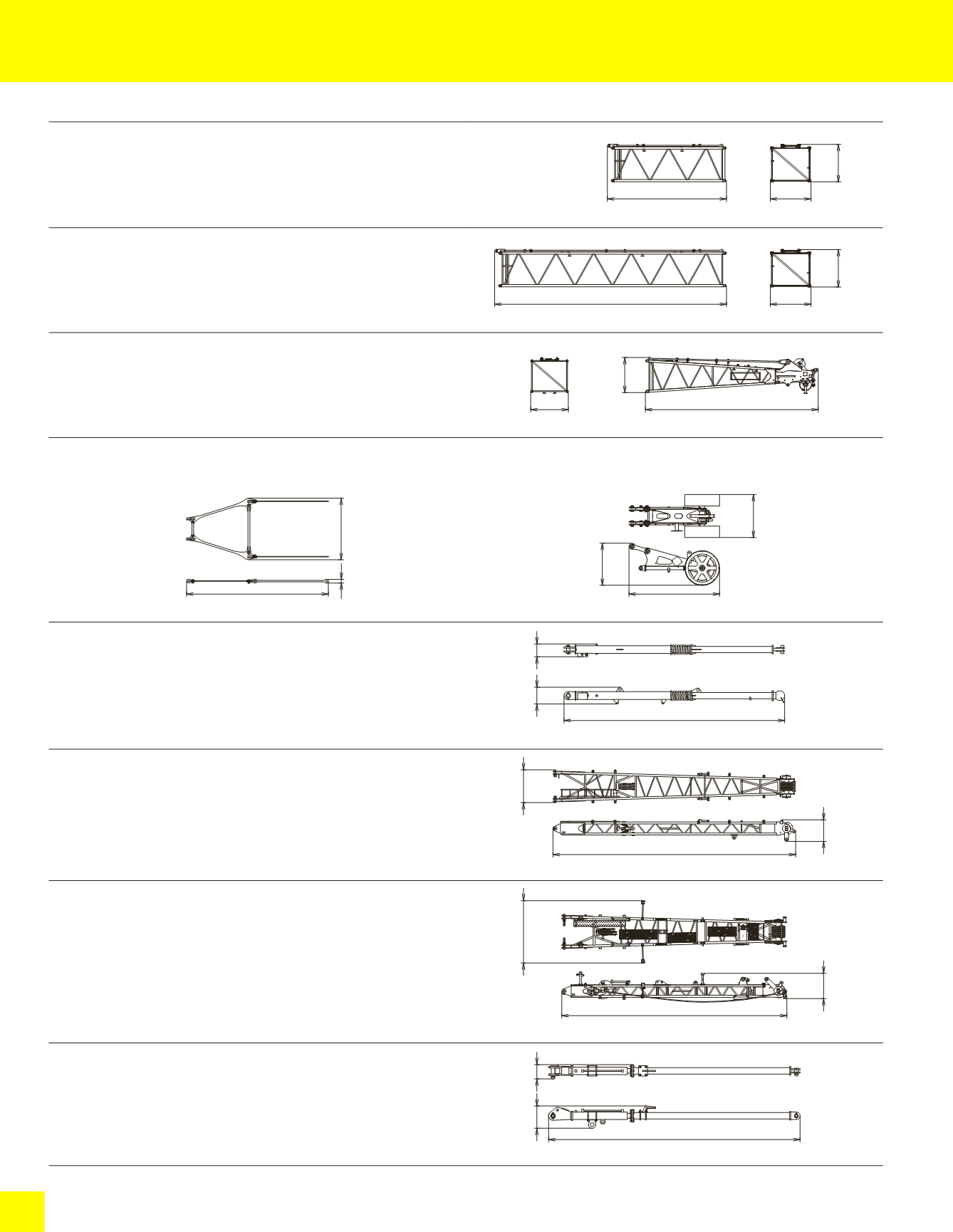

LUFFINGBOOM / JIB - DIMENSIONS&WEIGHT
Dimensions : ft-in (mm) Weight : lbs (kg)
20 ft (6 m) Luffing Jib Insert
Weight : 2,370 lbs (1,075 kg)
Includes guy lines and walkway.
6′ 7″ (2,005)
7′ 1″ (2,155)
20′ 9″ (6,325)
40 ft (12 m) Luffing Jib Insert
Weight : 4,170 lbs (1,890 kg)
Includes guy lines and walkway.
6′ 7″ (2,005)
7′ 1″ (2,155)
40′ 5″ (12,325)
Luffing Jib Tip
Weight : 6,615 lbs (3,000 kg)
Includes guy lines and walkway.
6′ 7″ (2,005)
6′ 12″ (2,130)
32′ 1″ (9,780)
Link Assy
Weight : 825 lbs (375 kg)
Auxiliary Sheave
Weight : 1,620 lbs (735 kg)
7″
(180)
9′ 1″
(2,760)
20′ 12″ (6,400)
3′ 8″
(1,130)
3′ 8″ (1,110)
7′ 10″ (2,380)
Luffing Jib back stop
Weight : 650 lbs (295 kg)
8″
(200)
10″
(260)
11′ 3″ (3,420)
Front Strut (Luffing Jib)
Weight : 4,585 lbs (2,080 kg)
5′
(1,525)
3′ 4″
(1,005)
36′ 6″ (11,125)
Rear Strut (Luffing Jib)
Weight : 5,335 lbs (2,420 kg)
Includes sling and walkway.
8′ 8″
(2,650)
31′ 4″ (9,555)
3′ 10″
(1,180)
Luffing Jib Strut Backstop
Weight : 490 lbs (225 kg)
10″
(250)
1′ 3″
(390)
14′ 5″ (4,400)
