STANDARDCONFIGURATION

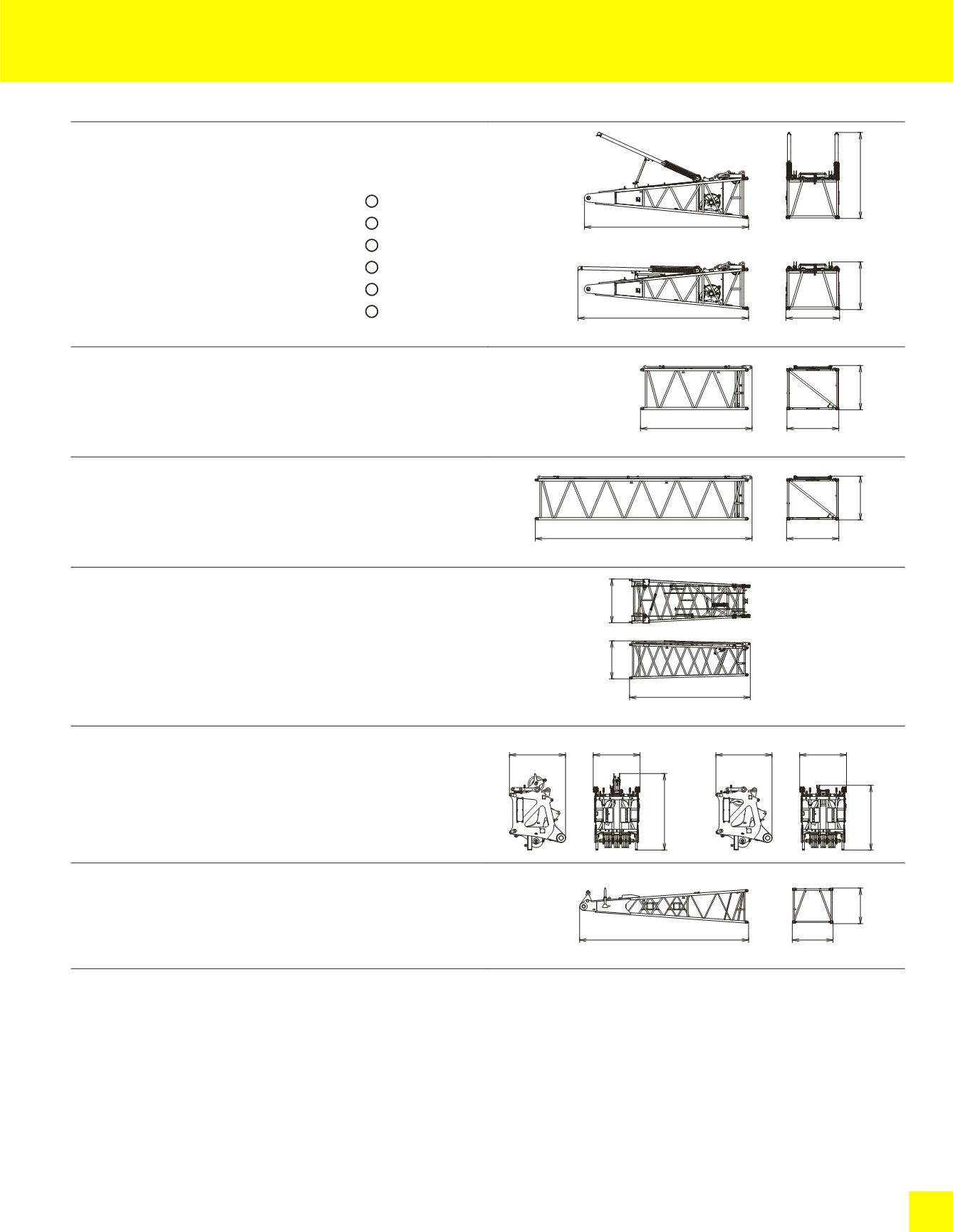

LUFFINGBOOM / JIB - DIMENSIONS&WEIGHT
Dimensions : ft-in (mm) Weight : lbs (kg)
30 ft (9 m) Boom Base
Weight : 27,935 lbs (12,675 kg)
W2 winch and wire rope
W2 Guide sheave
Boom backstop
Walkway
Guy lines for boom and strut guy lines
Reeving winch and wire rope
16′ 1″ (4,895)
8′ 11″ (2,710)
9′ 10″ (2,990)
31′ 9″ (9,670)
30′ 6″ (9,305)
20 ft (6 m) Boom Insert
Weight : 5,530 lbs (2,510 kg)
Includes walkway, guy lines for boom and strut guy lines.
8′ 3″
(2,515)
9′ 9″ (2,970)
20′ 10″ (6,340)
40 ft (12 m) Boom Insert
Weight : 9,645 lbs (4,375 kg)
Includes walkway, guy lines for boom and strut guy lines.
8′ 3″
(2,515)
9′ 9″ (2,970)
40′ 6″ (12,340)
26 ft (7.8 m) Taper Boom Insert
Weight : 7,995 lbs (3,630 kg)
Includes walkway, guide sheave, guy lines for boom and
strut guy lines.
9′ 8″
(2,940)
8′ 4″
(2,535)
26′ 6″ (8,065)
Boom Tip
Weight : 10,100 lbs (4,580 kg)
12′ (3,665)
7′ 4″ (2,230)
8′ 10″ (2,695)
10′ 2″ (3,100)
7′ 4″ (2,230)
8′ 10″ (2,695)
Luffing Jib Base
Weight : 6,100 lbs (2,770 kg)
Includes walkway.
6′ 2″ (1,870)
7′ 1″ (2,155)
30′ 6″ (9,285)
