CK3300G-2

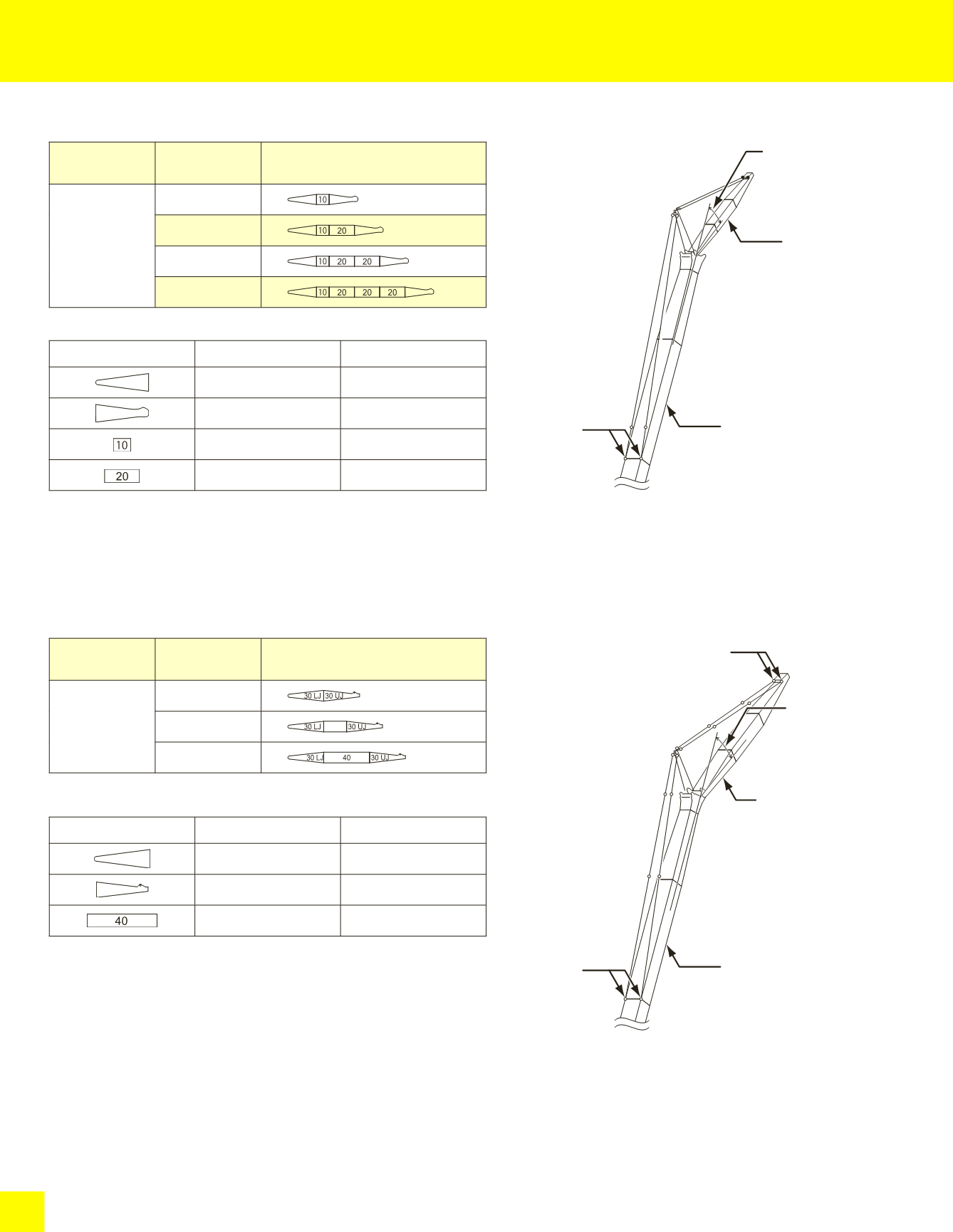

CRANE - BOOMAND JIB ARRANGEMENTS
Fixed Jib Arrangement
10 degrees
(or 30 degrees)
LINK
BOOM
FIXED JIB
Crane Boom
length : ft (m)
Jib length
: ft (m)
Jib arrangement
98 (30)
to
256 (78)
40 (12.2)
B
T
60 (18.3)
B
T
80 (24.4)
B
T
100 (30.5)
B
T
Symbol
Length
Remarks
B
15 ft (4.6 m)
Jib Base
T
15 ft (4.6 m)
Jib Tip
10 ft (3.0 m)
Jib Insert
20 ft (6.1 m)
Jib Insert
Heavy Fixed Jib Arrangement
BOOM
HEAVY FIXED JIB
LINK
LINK
15 degrees
(or 30 degrees)
Crane Boom
length : ft (m)
Heavy jib length
: ft (m)
Heavy jib arrangement
98 (30)
to
236 (72)
59 (18)
79 (24)
20
98 (30)
Symbol
Length
Remarks
30 LJ
30 ft (9 m)
Heavy (Luffing) Jib Base
30 UJ
30 ft (9 m)
Heavy (Luffing) Jib Tip
40 ft (12 m)
Heavy (Luffing) Jib Insert
*Actual length of heavy fixed jib sections are metric such as 9 m and 12 m.
The value shown above or in the chart are approximate conversion to feet.
