Supplemental Data - Clamshell
1. Rated loads included in the charts are the maximum
allowable freely suspended loads at a given boom
length, boom angle and load radius, and have been
determined for the machine standing level on firm
supporting surface under ideal operating conditions.
The user must limit or de-rate rated loads to allow for
adverse conditions (such as soft or uneven ground,
out-of-level conditions, wind, side loads, pendulum
action, jerking or sudden stopping of loads,
inexperience of personnel, multiple machine lifts, and
traveling with a load).
2. Rated loads do not exceed 66% of minimum tipping
loads. Rated loads based on factors other than
machine stability such as structural competence are
shown by asterisk * in the charts.
3. The machine must be reeved and set-up as stated in
the operation manual and all the instruction manuals if
these manuals are missing, obtain replacements.
•
The crane must be leveled to within 1% on a firm
supporting.
•
Machine shall be positively secured to prevent
shifting.
•
Boom backstops are required for all boom length.
•
Gantry must be fully raised position for all
operations.
•
Crawlers must be fully extended and be locked in
position.
•
Must have 104,300 lbs (6) Counterweights
installed, and without carbody weights.
4. Do not attempt to lift where no radius on load is listed
as crane may tip or collapse.
5. Attempting to lift more than rated loads may cause
machine to tip or collapse. Do not tip machine to
determine rated loads.
6. Weight of bucket, slings and other lifting devices are a
part of the total load. Their total weight must be
subtracted from the rated load to obtain the weight
that can be lifted.
7. The boom should be erected over the front of the
crawlers, not laterally.
8. Least stable position is over the side.
9. Maximum hoist load for number of reeving parts of
line for hoist rope.
Maximum Load for Main Boom
No. of Parts of line
1
Maximum Loads (lbs) 29,500
10. Rated loads listed apply only to the machine as originally
manufactured and designed by KOBELCO CONSTRUCTION
MACHINERY CO., LTD. Modifications to this machine or use
of equipment other than that specified can reduce operating
capacity.

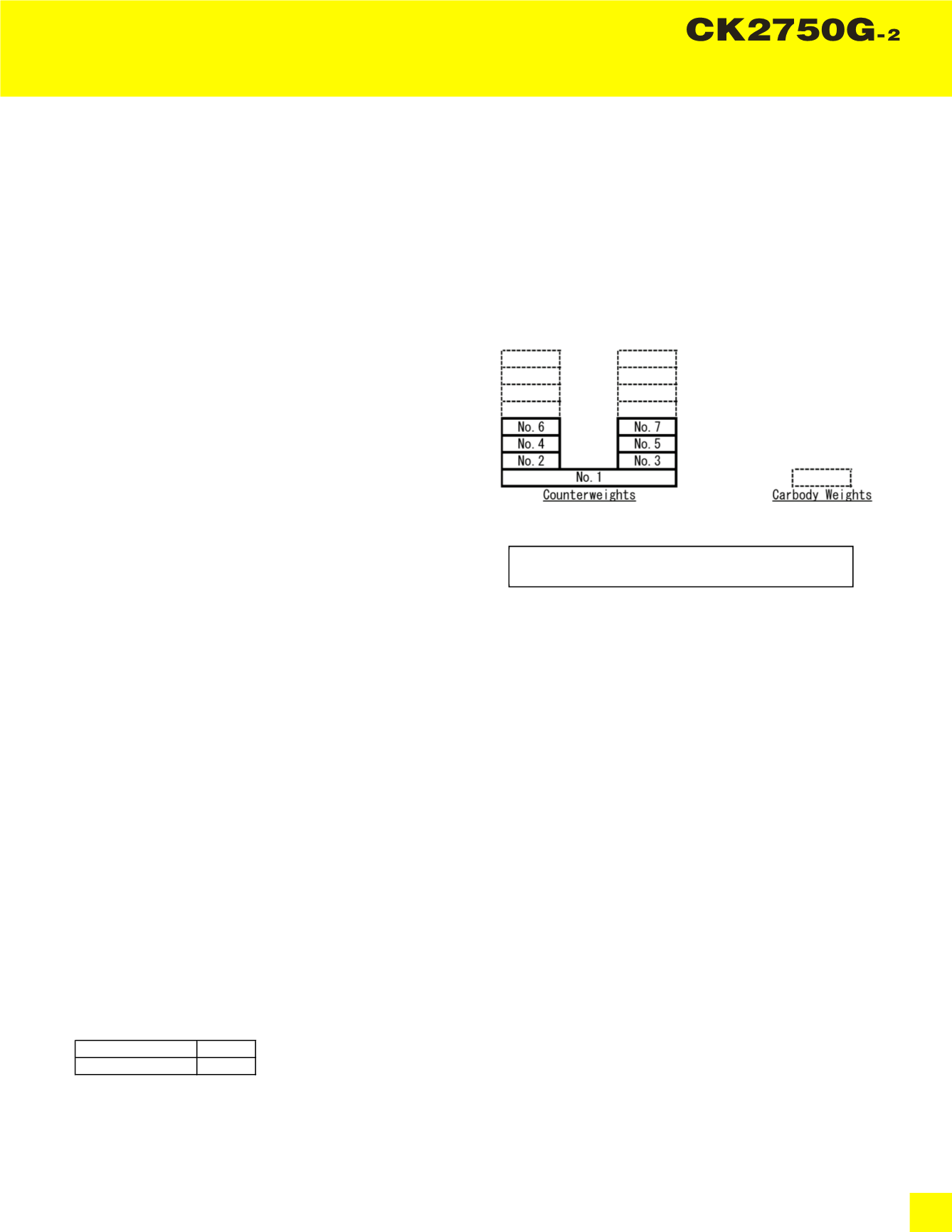

11. Assembling the Counterweight
104,300 lbs counterweight
Without Carbody weights
Operation of this equipment in excess of rated loads or
disregard of instruction voids the warranty.
