STANDARDCONFIGURATION

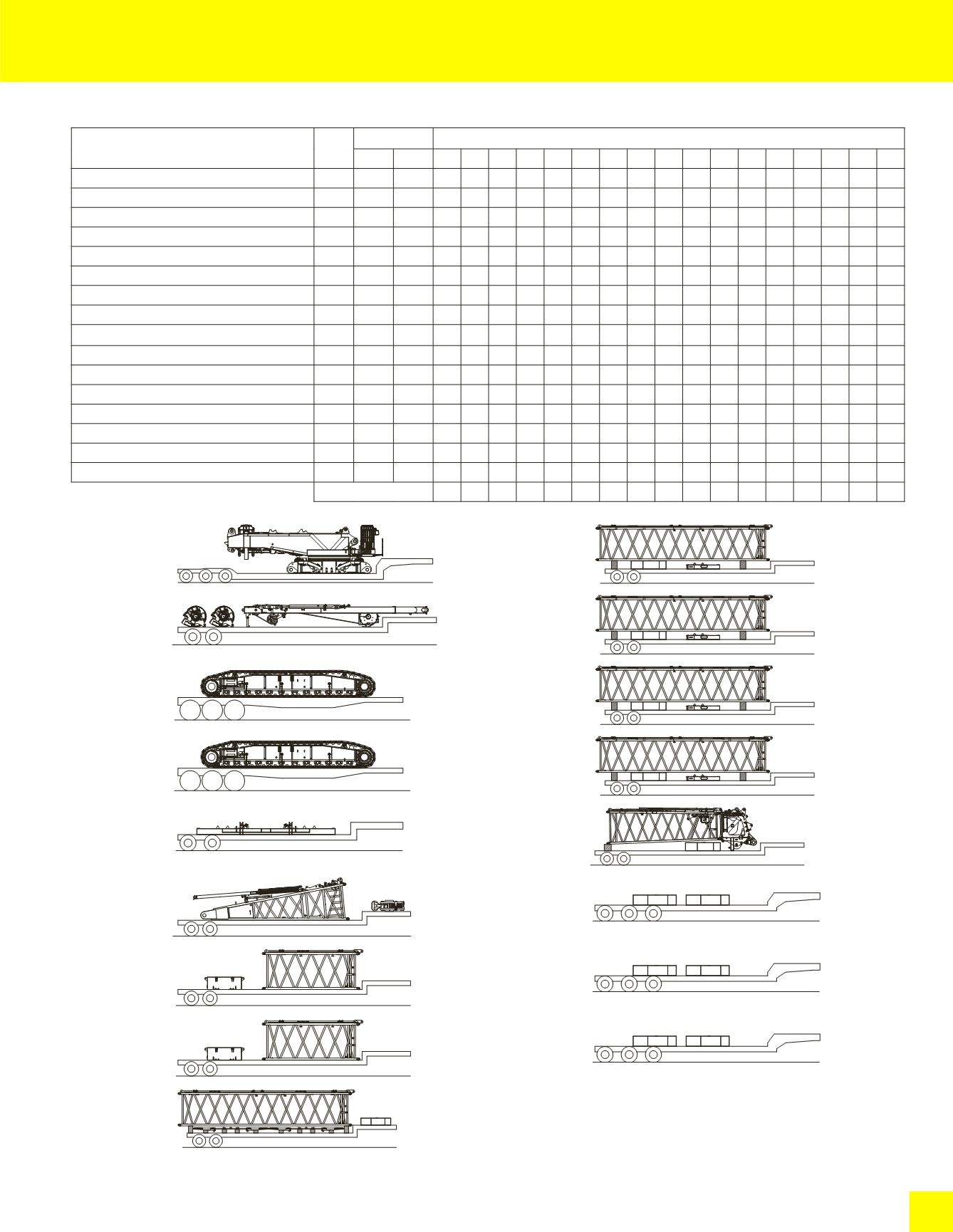

CRANE - TRANSPORTATION PLAN
Configuration : Standard CR 295′ (Counterweight : 352,700 lbs, Carbody weight 88,200 lbs)
Item
Qty.
Net wt.
Trailer
k-lbs m-ton #1 #2 #3 #4 #5 #6 #7 #8 #9 #10 #11 #12 #13 #14 #15 #16 #17
Base machine without H1 and H2 hoist winch 1 91.6 41.5 1
H1 hoist non-free fall winch with 1,969′ wire rope
1 10.4 4.7
1
H2 hoist non-free fall winch with 1,969′ wire rope
1 10.4 4.7
1
Standard mast w/W1 winch
1 22.6 10.2
1
Left crawler frame with 52″ shoe
1 64.8 29.4
1
Right crawler frame with 52″ shoe
1 64.8 29.4
1
Base counterweight
1 44.1 20.0
1
Counterweight (20,050 lbs)
12 22.1 10.0
1 1 1 1 1 1 2 2 2
Counterweight (11,025 lbs)
4 11.0 5.0
1 1 1 1
Base carbody weight
2 38.7 17.6
1 1
Carbody weight w/step
2 6.1 2.8
2
Base boom without W2 winch
1 20.5 9.3
1
20′ boom insert (*)
2 5.1 2.3
1 1
40′ boom insert (*)
5 8.9 4.0
1 1 1 1 1
Boom tip, 26′ taper boom (*) and aux sheave
1 19.3 8.8
1
110 US ton hook block
1 6.0 2.7
1
(*) : including guy lines for crane.
Gross wt. (×1,000 lbs) 91.6 43.4 64.8 64.8 44.1 26.4 43.8 43.8 43.1 41.9 41.9 41.9 41.9 41.4 44.1 44.1 44.1
Trailer #1
Trailer #10
Trailer #2
Trailer #11
Trailer #3
Trailer #12
Trailer #4
Trailer #13
Trailer #5
Trailer #14
Trailer #6
Trailer #15
Trailer #7
Trailer #16
Trailer #8
Trailer #17
Trailer #9
