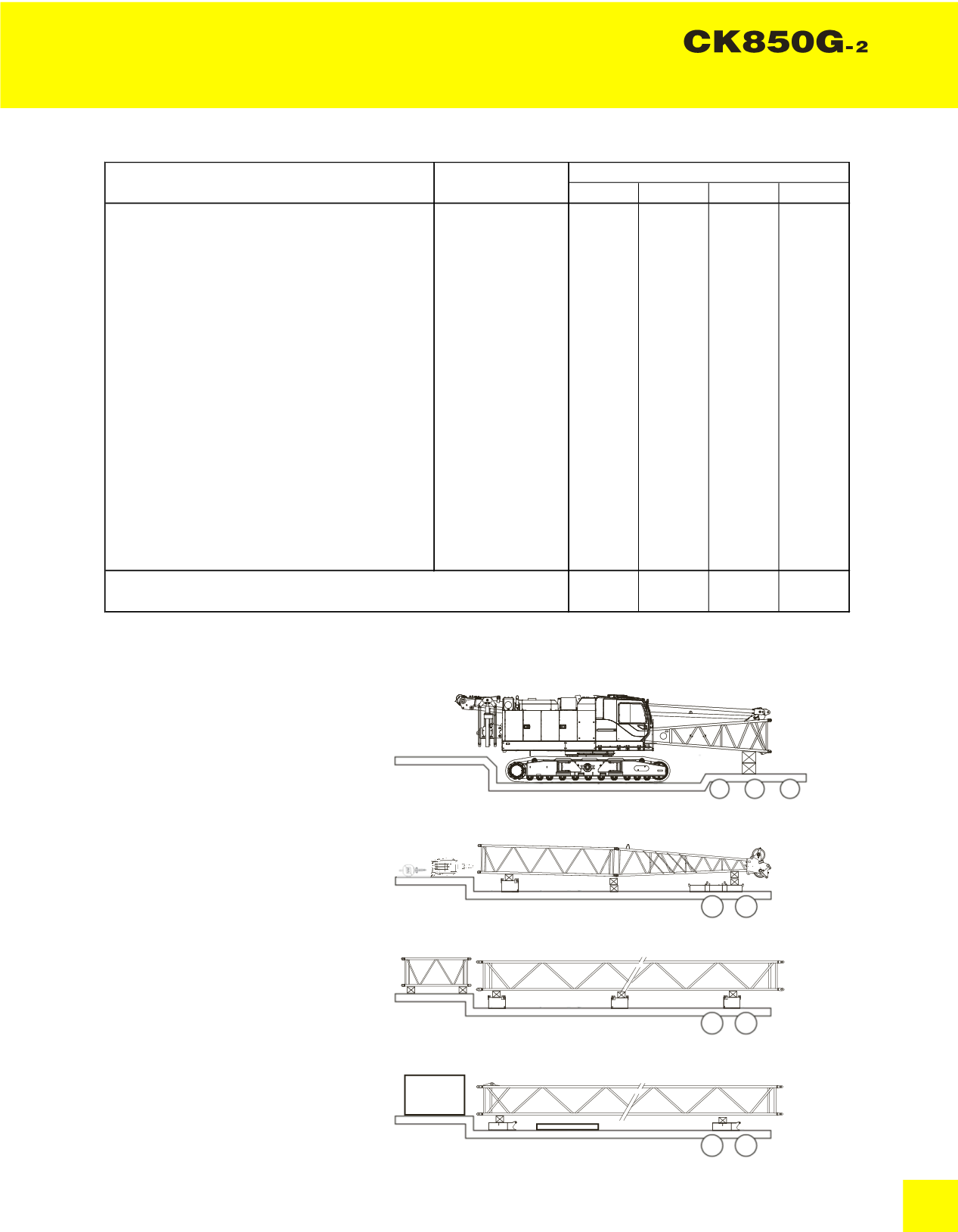

Transportation Plan
Trailer #1
Trailer #2
Trailer #3
Trailer #4
Refer to pages 10-12
Weight
lbs
(kg)
#1
#2
#3
#4
Base Machine with Boom Base and Crawlers*
92,200 (41,810)
1
Counterweight Base
20,550 (9,320)
1
Counterweight (L)
9,260 (4,200)
2
Counterweight ('R)
9,260 (4,200)
1
1
Carbody Weight
7,170 (3,250)
2
10 ft Insert Boom
610
(275)
1
20 ft Insert Boom
1,100
(475)
1
40 ft Insert Boom
1,900
(870)
1
40 ft Insert Boom (w/ Lug)
2,000
(885)
1
Boom Tip
2,300 (1,025)
1
Jib Base
440
(200)
10 ft Insert Jib
210
(95)
20 ft Insert Jib
390
(175)
Jib Tip
490
(220)
75 Ton Block
3,000 (1,361)
1
13 Ton Ball
800
(365)
1
Ladder Assembly
90
(41)
1
Support Box
5,000 (2,268)
1
lbs
92,200 37,010 30,290 21,430
(kg)
(41,810) (16,746) (13,745)
(9,694)
* Third drum is not included. Add 4,200 lbs if third drum is installed.
Loads for transportation were targeted at 45,000 lbs, 8' 6" wide, 48' long and 13' 6" high from ground, 48' step deck.
This may vary depending on truck/trailer weight, style of trailer and state law.
Description of Item
Approx. Total Shipping Weight
Trailer Loads
